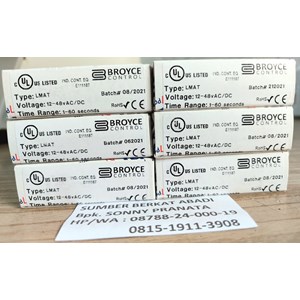

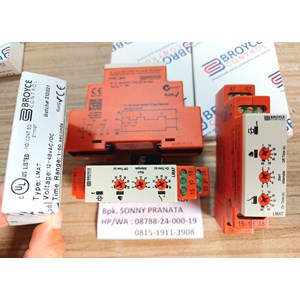

BROYCE LMAT 12-48VAC/DC MULTI ATTEMPT TO START TIMER 1-60 SECOND B8MAT

BROYCE CONTROL LMAT 12-48 VAC/DC MULTI ATTEMPT TO START TIMER 1-60 SECONDS B8MAT B 8 MAT

Brand = BROYCE CONTROL
Type = LMAT (NEW Part Number) : B8MAT (OLD Part Number)
Description = Multi Attempt to Start Timer

LMAT
- Multi Attempt to Start
- Designed to limit the number of attempts an engine has to start before providing an alarm
- Selectable number of attempts (2-8)
- Multi-voltage (12 –48VAC/DC)
- Single time range (1 – 60s)
- 2 x SPDT Relay outputs
- 17.5mm wide, DIN Rail mount
- UL Listed

The timer is offered with two separate relays.
When power is applied, the first relay (Attempts) will energise for the set “on” time delay period,
then de-energise for the set “off” time delay period. This is classed as the “first attempt”.
The same relay will continue to cycle on and off for the “number of attempts” set on the adjustment.
If all the attempts are allowed to run, at the end of the last “on” time delay period,
the first relay will de-energise and the second relay (Alarm) will energise and remain in this state.
Power must be removed and re-applied to restart the function over again.

Specification :
Timing function = Multi Attempt to Start
Supply voltage = 12 – 48VAC/DC +15%/-30%
Time delay = 1 – 60s
No. of Attempts to start = 2, 3, 4, 5, 6, 7, 8
Output = SPDT 8A @ 250V (AC1)
Dimensions(mm) = W:17.5 x H:89 x D:66.5
Product standard(s) = IEC 61812
